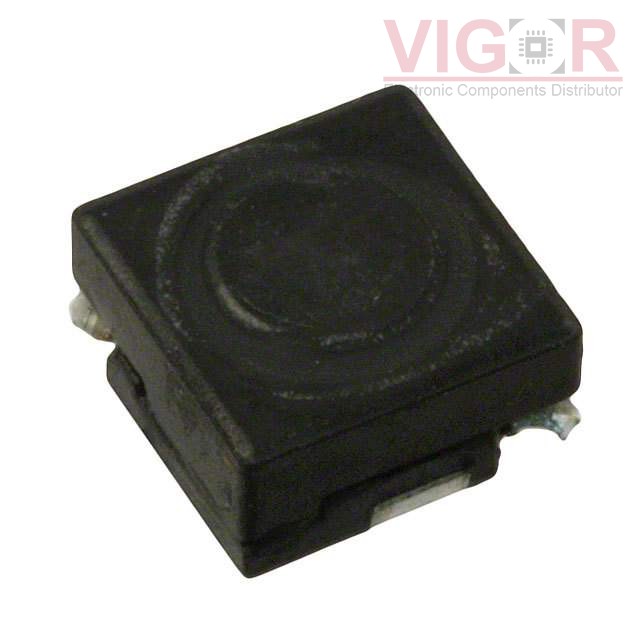

SRR0603-470YL

Part No :: SRR0603-470YL

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 1593694

Description: FIXED IND 47UH 500MA 550MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRR0603-470YL PDF

Country of origin: -

Date code: -

SRR0603-470YL Specifications

Type	Description
Series:	SRR0603
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	47 µH
Tolerance:	±15%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	730mA
Shielding:	Shielded
DC Resistance (DCR):	550mOhm Max
Q @ Freq:	13 @ 2.52MHz
Frequency - Self Resonant:	13MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard, Corner Terminals
Supplier Device Package:	-
Size / Dimension:	0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max):	0.130" (3.30mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Dec 28 - Jan 01 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.41~~	~~$0.41~~
1000	~~$0.38~~	~~$385.00~~

Current price of SRR0603-470YL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

TYA40202R2M-10

FIXED IND 2.2UH 4A 56 MOHM SMD

HKQ04021N6C-T

FIXED IND 1.6NH 320MA 190 MOHM

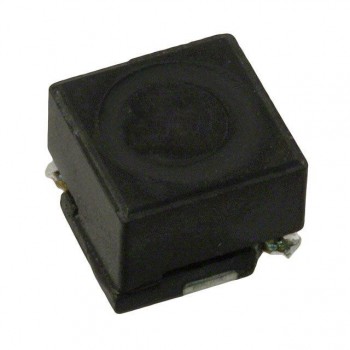

SRR0604-102KL
