74477009

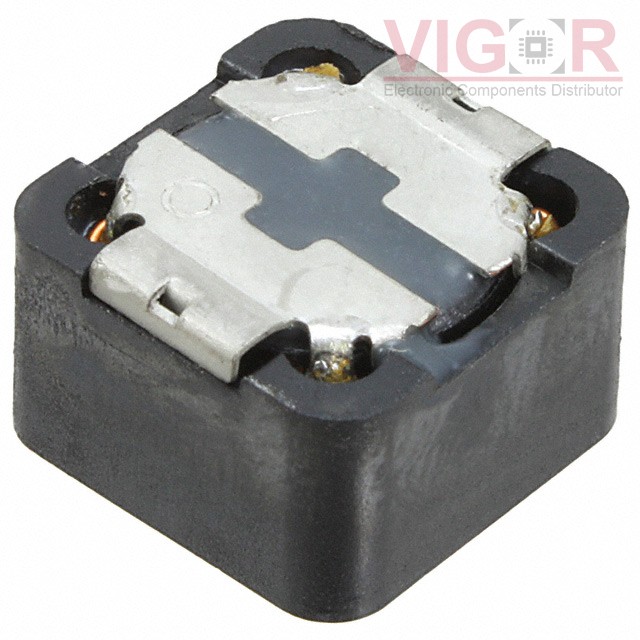

Image is for reference,
please contact us to get the real picture

Part No :: 74477009

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 470NH 23.5A 3 MOHM SMD

Catalog: Fixed Inductors

DataSheet: 74477009 PDF

Availability: 465 pieces

Unit Price: ~~$2.25000~~

Current price of 74477009 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

74477009 Specifications

Type	Description
Series:	WE-PD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	470 nH
Tolerance:	-25%, +20%
Current Rating (Amps):	23.5 A
Current - Saturation (Isat):	26.4A
Shielding:	Shielded
DC Resistance (DCR):	3mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	120MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max):	0.315" (8.00mm)
