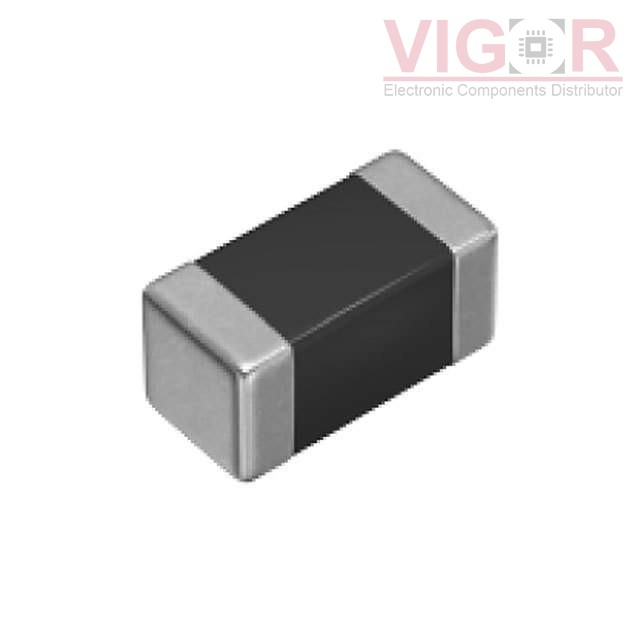

KLZ2012PHR220WTD25

Part No :: KLZ2012PHR220WTD25

Manufacturer: TDK Corporation

VIGOR # :: 1595064

Description: FIXED IND 22UH 220MA 1.625 OHM

Catalog: Fixed Inductors

DataSheet: KLZ2012PHR220WTD25 PDF

Country of origin: -

Date code: -

KLZ2012PHR220WTD25 Specifications

Type	Description
Series:	KLZ-HR
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	220 mA
Current - Saturation (Isat):	100mA
Shielding:	Shielded
DC Resistance (DCR):	1.625Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	2 MHz
Features:	Soft Termination
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.057" (1.45mm)
