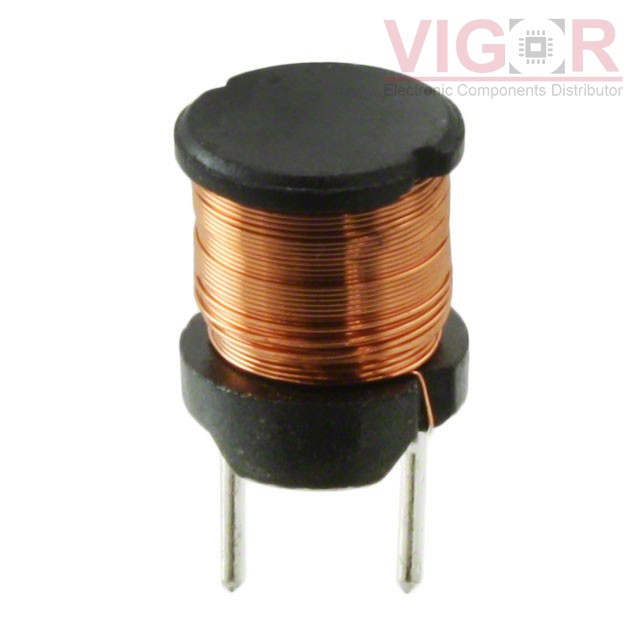

744772200

Part No :: 744772200

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 20UH 2.6A 50 MOHM TH

Catalog: Fixed Inductors

DataSheet: 744772200 PDF

Availability: 144 pieces

Current price of 744772200 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744772200 Specifications

Type	Description
Series:	WE-TI
Package:	Tray
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	20 µH
Tolerance:	±10%
Current Rating (Amps):	2.6 A
Current - Saturation (Isat):	3.5A
Shielding:	Unshielded
DC Resistance (DCR):	50mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	12.5MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder (Open)
Supplier Device Package:	-
Size / Dimension:	0.307" Dia (7.80mm)
Height - Seated (Max):	0.394" (10.00mm)
