SDR2207-220YL

Product image
Product thumb
Part No :

SDR2207-220YL

Manufacturer
J.W. Miller / Bourns
VIGOR # :

1595751

Description
FIXED IND 22UH 4A 39.4 MOHM SMD
Catalog
Fixed Inductors
DataSheet
SDR2207-220YL PDF
Country of origin
-
Date code
-
ads
SDR2207-220YL Specifications
Type Description
Series:SDR2207
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±15%
Current Rating (Amps):4 A
Current - Saturation (Isat):6.5A
Shielding:Unshielded
DC Resistance (DCR):39.4mOhm Max
Q @ Freq:27 @ 3MHz
Frequency - Self Resonant:14MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.866" L x 0.591" W (22.00mm x 15.00mm)
Height - Seated (Max):0.307" (7.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 22 - Jan 26 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.35 $1.35
250 $1.15 $286.88
500 $0.98 $491.78
750 $0.93 $696.70
1250 $0.87 $1 092.86
2500 $0.86 $2 137.50

Current price of SDR2207-220YL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
VLS4012T-1R5N1R5

VLS4012T-1R5N1R5

FIXED IND 1.5UH 1.5A 72 MOHM SMD

SP1812-153G

SP1812-153G

FIXED IND 15UH 640MA 490 MOHM

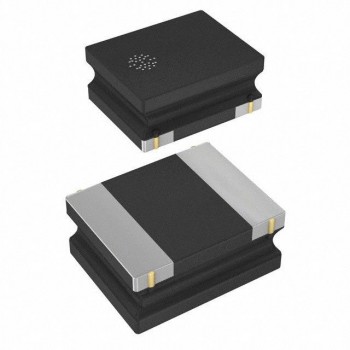

VLS252010HBU-4R7M
