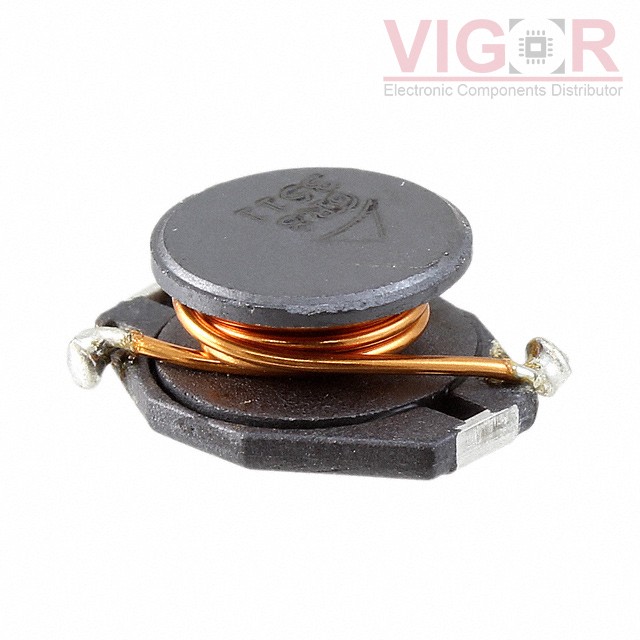

B82476B1222M100

Part No :: B82476B1222M100

Manufacturer: TDK EPCOS

Description: FIXED IND 2.2UH 6.7A 10.5 MOHM

Catalog: Fixed Inductors

DataSheet: B82476B1222M100 PDF

Availability: 151 pieces

Current price of B82476B1222M100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82476B1222M100 Specifications

Type	Description
Series:	B82476B1
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	6.7 A
Current - Saturation (Isat):	7A
Shielding:	Unshielded
DC Resistance (DCR):	10.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.510" L x 0.370" W (12.95mm x 9.40mm)
Height - Seated (Max):	0.200" (5.08mm)
