PM1608S-680M-RC

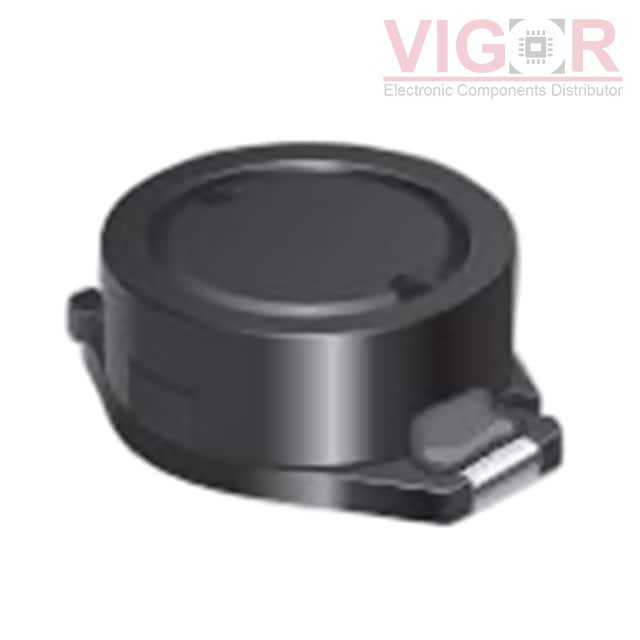

Image is for reference,
please contact us to get the real picture

Part No :: PM1608S-680M-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 68UH 400MA 290MOHM SMD

Catalog: Fixed Inductors

DataSheet: PM1608S-680M-RC PDF

Availability: 0 pieces

Unit Price: ~~$0.89300~~

Current price of PM1608S-680M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PM1608S-680M-RC Specifications

Type	Description
Series:	PM1608S
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	68 µH
Tolerance:	±20%
Current Rating (Amps):	400 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	290mOhm Max
Q @ Freq:	40 @ 100kHz
Frequency - Self Resonant:	15MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.260" L x 0.173" W (6.60mm x 4.40mm)
Height - Seated (Max):	0.118" (3.00mm)

Please confirm the specifications of the products when ordering.
