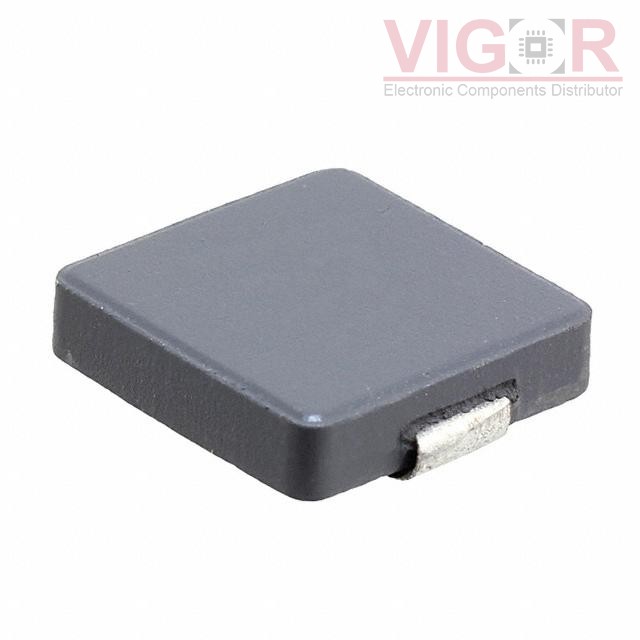

SRP1238A-R82M

Part No :: SRP1238A-R82M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 820NH 25A 3 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRP1238A-R82M PDF

Availability: 1 pieces

Current price of SRP1238A-R82M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRP1238A-R82M Specifications

Type	Description
Series:	SRP1238A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Carbonyl Powder
Inductance:	820 nH
Tolerance:	±20%
Current Rating (Amps):	25 A
Current - Saturation (Isat):	44A
Shielding:	Shielded
DC Resistance (DCR):	3mOhm Max
Q @ Freq:	15 @ 100kHz
Frequency - Self Resonant:	45MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max):	0.138" (3.50mm)

Please confirm the specifications of the products when ordering.
