B82432C1223K000

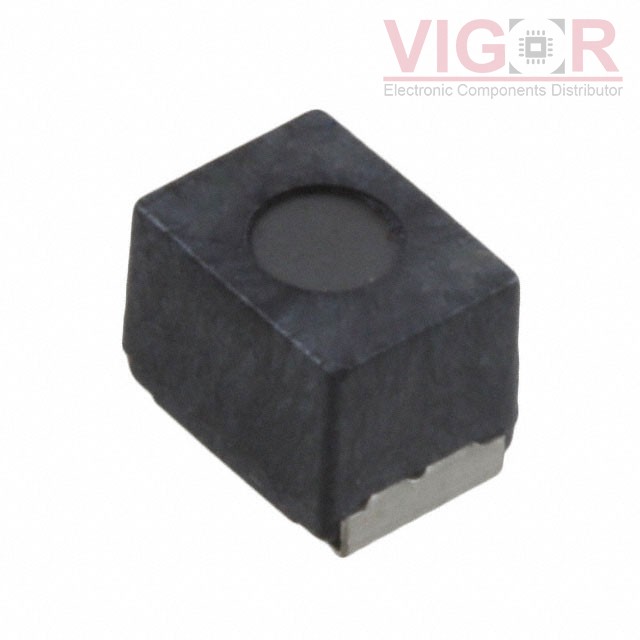

Image is for reference,
please contact us to get the real picture

Part No :: B82432C1223K000

Manufacturer: TDK EPCOS

Description: FIXED IND 22UH 260MA 1.45 OHM

Catalog: Fixed Inductors

DataSheet: B82432C1223K000 PDF

Availability: 13295 pieces

Unit Price: ~~$1.02000~~

Current price of B82432C1223K000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82432C1223K000 Specifications

Type	Description
Series:	SIMID
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±10%
Current Rating (Amps):	260 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.45Ohm Max
Q @ Freq:	30 @ 2.52MHz
Frequency - Self Resonant:	16MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD, J-Lead
Supplier Device Package:	1812 (4532 Metric)
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.134" (3.40mm)
