HCMA0503-1R0-R

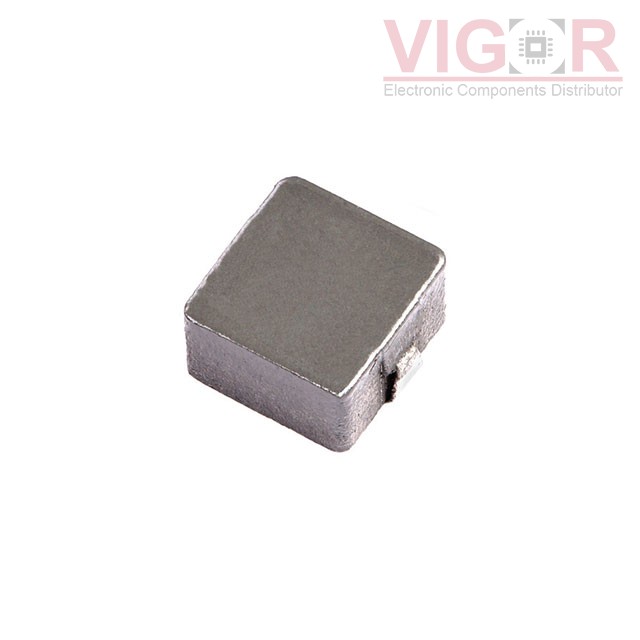

Image is for reference,
please contact us to get the real picture

Part No :: HCMA0503-1R0-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 1UH 10.1A 11.4 MOHM

Catalog: Fixed Inductors

DataSheet: HCMA0503-1R0-R PDF

Availability: 1954 pieces

Unit Price: ~~$1.10000~~

Current price of HCMA0503-1R0-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCMA0503-1R0-R Specifications

Type	Description
Series:	HCMA0503
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Iron Powder
Inductance:	1 µH
Tolerance:	±20%
Current Rating (Amps):	10.1 A
Current - Saturation (Isat):	8.5A
Shielding:	Shielded
DC Resistance (DCR):	11.4mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.203" L x 0.201" W (5.15mm x 5.10mm)
Height - Seated (Max):	0.118" (3.00mm)
