38S801C

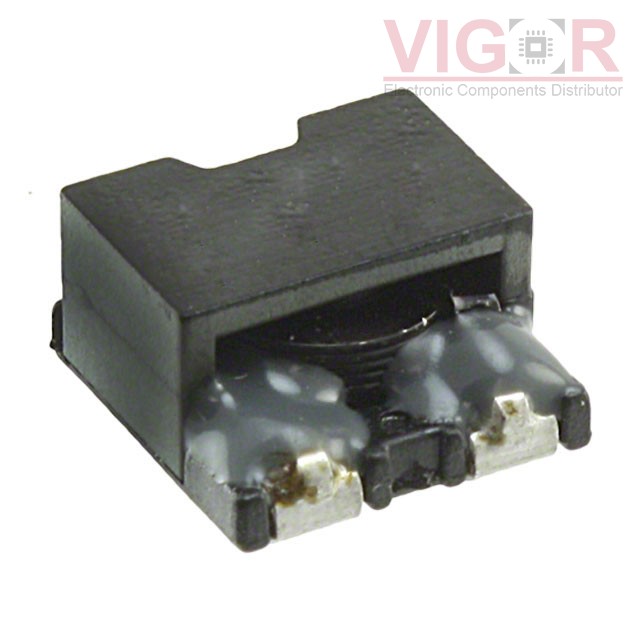

Image is for reference,
please contact us to get the real picture

Part No :: 38S801C

Manufacturer: Murata Power Solutions

Description: FIXED IND 800NH 12.5A 3.7 MOHM

Catalog: Fixed Inductors

DataSheet: 38S801C PDF

Availability: 0 pieces

Unit Price: ~~$1.10000~~

Current price of 38S801C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

38S801C Specifications

Type	Description
Series:	3800
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	800 nH
Tolerance:	±20%
Current Rating (Amps):	12.5 A
Current - Saturation (Isat):	20A
Shielding:	Unshielded
DC Resistance (DCR):	3.7mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 130°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.409" L x 0.409" W (10.40mm x 10.40mm)
Height - Seated (Max):	0.220" (5.60mm)
