744302015

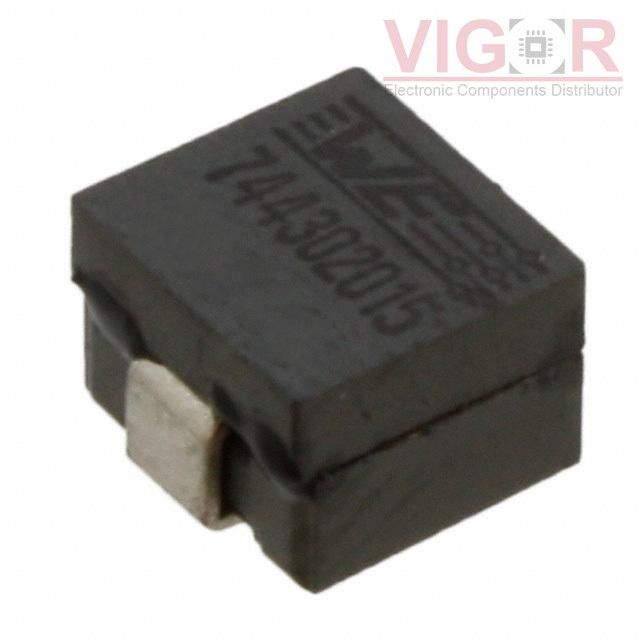

Image is for reference,
please contact us to get the real picture

Part No :: 744302015

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 150NH 30A 0.235 MOHM

Catalog: Fixed Inductors

DataSheet: 744302015 PDF

Availability: 947 pieces

Unit Price: ~~$1.93000~~

Current price of 744302015 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744302015 Specifications

Type	Description
Series:	WE-HCM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Manganese Zinc Ferrite (MnZn)
Inductance:	150 nH
Tolerance:	±20%
Current Rating (Amps):	30 A
Current - Saturation (Isat):	32A
Shielding:	Shielded
DC Resistance (DCR):	0.235mOhm
Q @ Freq:	-
Frequency - Self Resonant:	55MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.281" L x 0.276" W (7.15mm x 7.00mm)
Height - Seated (Max):	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
