B82442H1102K000

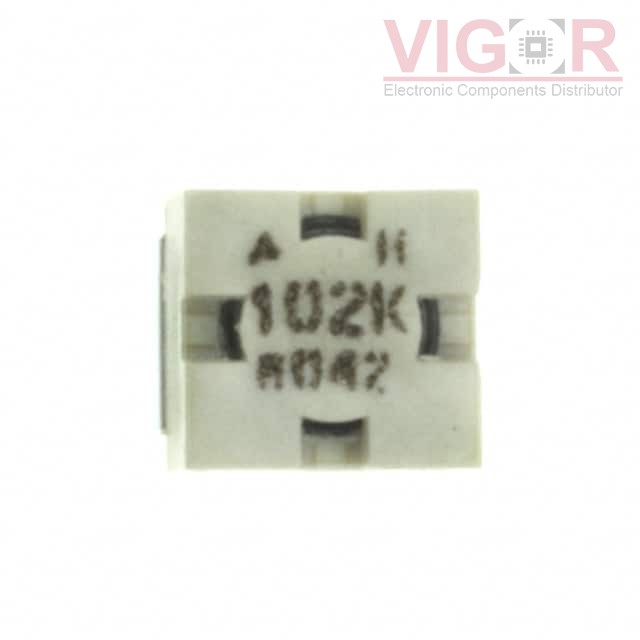

Image is for reference,
please contact us to get the real picture

Part No :: B82442H1102K000

Manufacturer: TDK EPCOS

Description: FIXED IND 1UH 2.5A 24 MOHM SMD

Catalog: Fixed Inductors

DataSheet: B82442H1102K000 PDF

Availability: 398 pieces

Unit Price: ~~$1.68000~~

Current price of B82442H1102K000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82442H1102K000 Specifications

Type	Description
Series:	SIMID
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Last Time Buy
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1 µH
Tolerance:	±10%
Current Rating (Amps):	2.5 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	24mOhm Max
Q @ Freq:	10 @ 7.96MHz
Frequency - Self Resonant:	95MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD, J-Lead
Supplier Device Package:	2220 (5650 Metric)
Size / Dimension:	0.220" L x 0.197" W (5.60mm x 5.00mm)
Height - Seated (Max):	0.209" (5.30mm)

Please confirm the specifications of the products when ordering.
