22R156MC

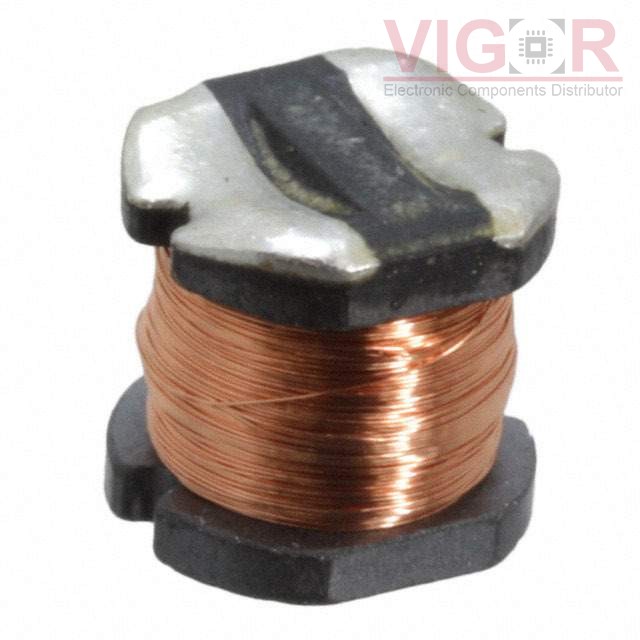

Image is for reference,
please contact us to get the real picture

Part No :: 22R156MC

Manufacturer: Murata Power Solutions

Description: FIXED IND 15MH 55MA 49.5 OHM SMD

Catalog: Fixed Inductors

DataSheet: 22R156MC PDF

Availability: 260 pieces

Unit Price: ~~$1.62000~~

Current price of 22R156MC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

22R156MC Specifications

Type	Description
Series:	2200RM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	15 mH
Tolerance:	±10%
Current Rating (Amps):	55 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	49.5Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max):	0.311" (7.90mm)

Please confirm the specifications of the products when ordering.
