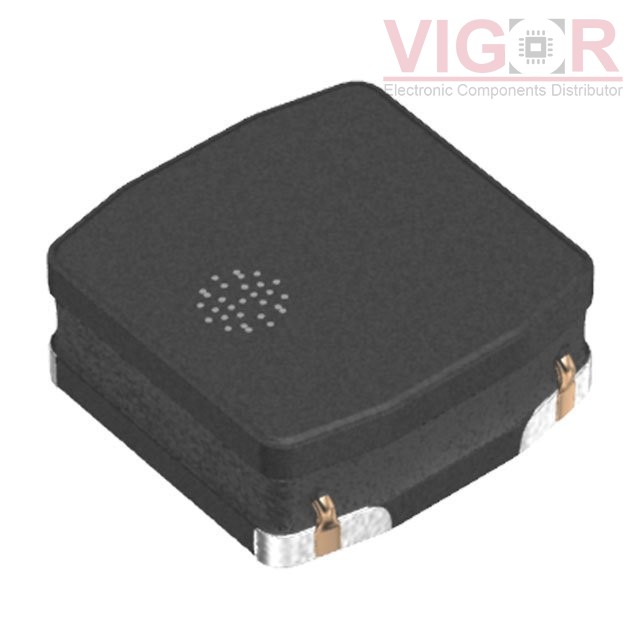

VLS3012CX-2R2M-1

Part No :: VLS3012CX-2R2M-1

Manufacturer: TDK Corporation

Description: FIXED IND 2.2UH 2.83A 74MOHM SMD

Catalog: Fixed Inductors

DataSheet: VLS3012CX-2R2M-1 PDF

Availability: 2232 pieces

Current price of VLS3012CX-2R2M-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VLS3012CX-2R2M-1 Specifications

Type	Description
Series:	VLS-CX-1
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	2.83 A
Current - Saturation (Isat):	1.89A
Shielding:	Shielded
DC Resistance (DCR):	74mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max):	0.047" (1.20mm)
