ELL-6GG101M

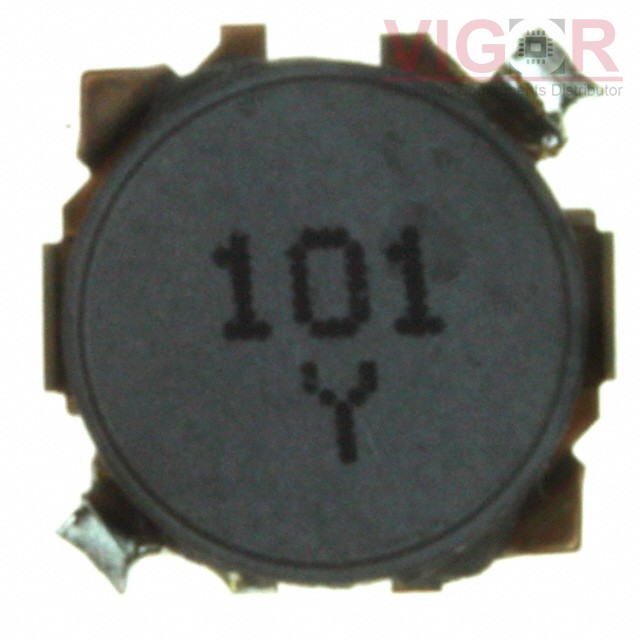

Image is for reference,
please contact us to get the real picture

Part No :: ELL-6GG101M

Manufacturer: Panasonic

Description: FIXED IND 100UH 350MA 1.48 OHM

Catalog: Fixed Inductors

DataSheet: ELL-6GG101M PDF

Availability: 0 pieces

Unit Price: ~~$0.87000~~

Current price of ELL-6GG101M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ELL-6GG101M Specifications

Type	Description
Series:	G
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	100 µH
Tolerance:	±20%
Current Rating (Amps):	350 mA
Current - Saturation (Isat):	300mA
Shielding:	Shielded
DC Resistance (DCR):	1.48Ohm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):	0.063" (1.60mm)

Please confirm the specifications of the products when ordering.
