SDE0805A-470K

Part No :: SDE0805A-470K

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 1598815

Description: FIXED IND 47UH 1.7A 180 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SDE0805A-470K PDF

Country of origin: -

Date code: -

SDE0805A-470K Specifications

Type	Description
Series:	SDE0805A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	47 µH
Tolerance:	±10%
Current Rating (Amps):	1.7 A
Current - Saturation (Isat):	1.4A
Shielding:	Unshielded
DC Resistance (DCR):	180mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	12.1MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max):	0.217" (5.50mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3150

Shipped from

HK warehouse

Expected Shipping Date

Jan 28 - Feb 01 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.77~~	~~$0.77~~
1000	~~$0.25~~	~~$254.32~~
3000	~~$0.24~~	~~$718.08~~
5000	~~$0.23~~	~~$1 170.40~~

Current price of SDE0805A-470K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

CV201210-6R8K

FIXED IND 6.8UH 15MA 1 OHM SMD

IHLP4040DZER6R8M8A

FIXED IND 6.8UH 8A 22.36 MOHM

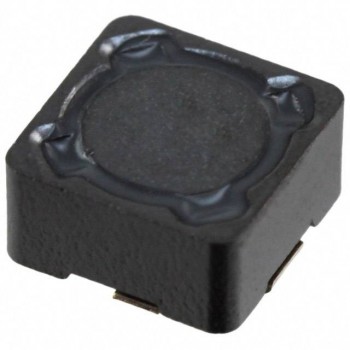

46102C
