104CDMCCDS-2R2MC

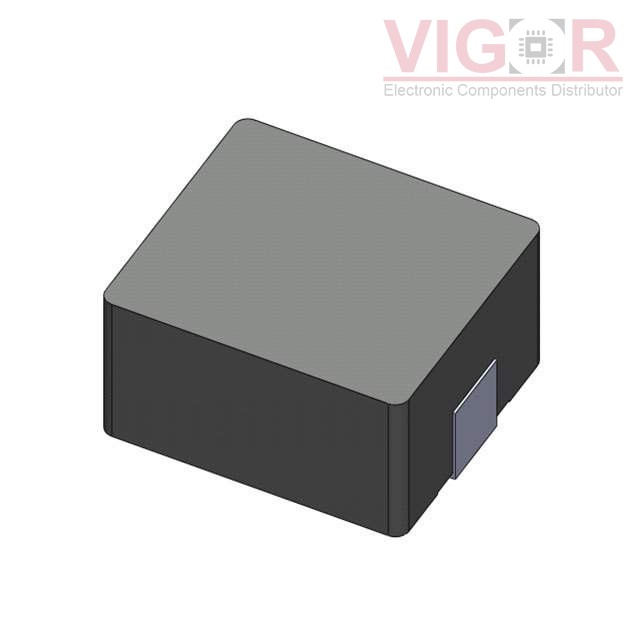

Image is for reference,
please contact us to get the real picture

Part No :: 104CDMCCDS-2R2MC

Manufacturer: Sumida Corporation

Description: FIXED IND 2.2UH 15A 7 MOHM SMD

Catalog: Fixed Inductors

DataSheet: 104CDMCCDS-2R2MC PDF

Availability: 2101 pieces

Unit Price: ~~$0.95000~~

Current price of 104CDMCCDS-2R2MC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

104CDMCCDS-2R2MC Specifications

Type	Description
Series:	104CDMC/DS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	Metal
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	15 A
Current - Saturation (Isat):	21A
Shielding:	Shielded
DC Resistance (DCR):	7mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	SMD
Size / Dimension:	0.453" L x 0.394" W (11.50mm x 10.00mm)
Height - Seated (Max):	0.157" (4.00mm)
