7447745220

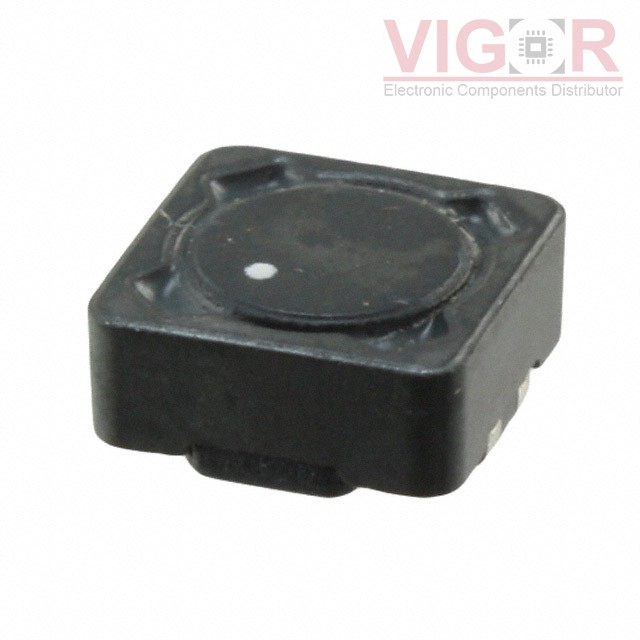

Image is for reference,
please contact us to get the real picture

Part No :: 7447745220

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 22UH 1.05A 330 MOHM

Catalog: Fixed Inductors

DataSheet: 7447745220 PDF

Availability: 1000 pieces

Unit Price: ~~$1.76000~~

Current price of 7447745220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7447745220 Specifications

Type	Description
Series:	WE-PD2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1.05 A
Current - Saturation (Isat):	1.2A
Shielding:	Unshielded
DC Resistance (DCR):	330mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	24MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max):	0.091" (2.30mm)

Please confirm the specifications of the products when ordering.
