B82144B2563J000

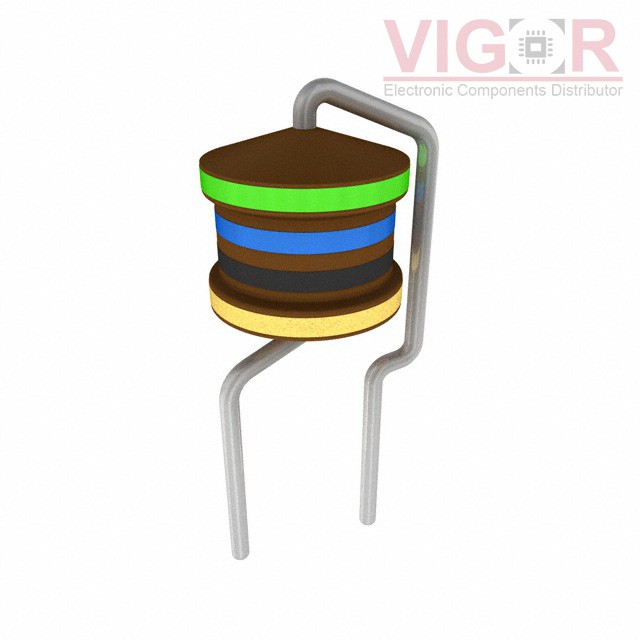

Product image
Product thumb
Part No :

B82144B2563J000

Manufacturer
TDK EPCOS
VIGOR # :

1599351

Description
FIXED IND 56UH 1.6A 310 MOHM TH
Catalog
Fixed Inductors
DataSheet
B82144B2563J000 PDF
Country of origin
-
Date code
-
ads
B82144B2563J000 Specifications
Type Description
Series:LBC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±5%
Current Rating (Amps):1.6 A
Current - Saturation (Isat):1.3A
Shielding:Unshielded
DC Resistance (DCR):310mOhm Max
Q @ Freq:40 @ 79.6kHz
Frequency - Self Resonant:6.8MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.256" Dia (6.50mm)
Height - Seated (Max):0.551" (14.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 2929
Shipped from
HK warehouse
Expected Shipping Date
Apr 06 - Apr 10 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.7100 $0.71
1000 USD 0,36 $355.30
3000 $0.3344 $1 003.20
5000 $0.3240 $1 619.75
10000 $0.3135 $3 135.00
25000 $0.3030 $7 576.25

Current price of B82144B2563J000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
