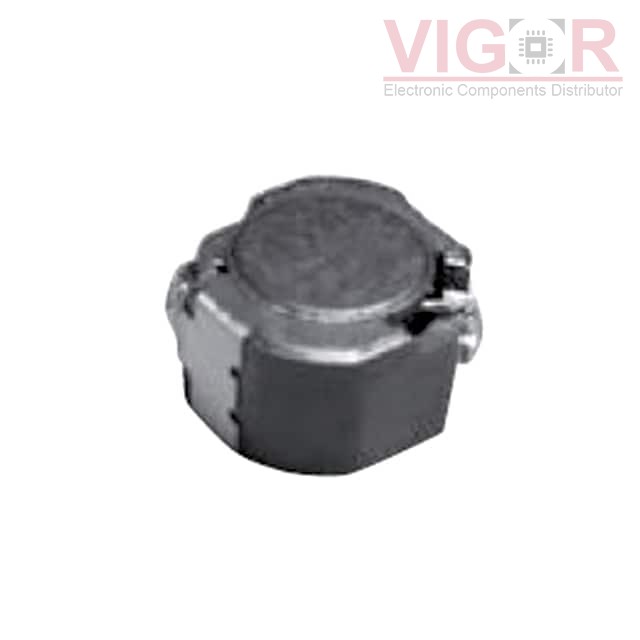

CDRH70D45BT150NP-2R2NC

Part No :: CDRH70D45BT150NP-2R2NC

Manufacturer: Sumida Corporation

VIGOR # :: 1599467

Description: FIXED IND 2.2UH 7.6A 10MOHM SMD

Catalog: Fixed Inductors

DataSheet: CDRH70D45BT150NP-2R2NC PDF

Country of origin: -

Date code: -

CDRH70D45BT150NP-2R2NC Specifications

Type	Description
Series:	CDRH70D45B/T150
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±30%
Current Rating (Amps):	7.6 A
Current - Saturation (Isat):	6.2A
Shielding:	Shielded
DC Resistance (DCR):	10mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.303" L x 0.287" W (7.70mm x 7.30mm)
Height - Seated (Max):	0.189" (4.80mm)
