SRP7050TA-220M

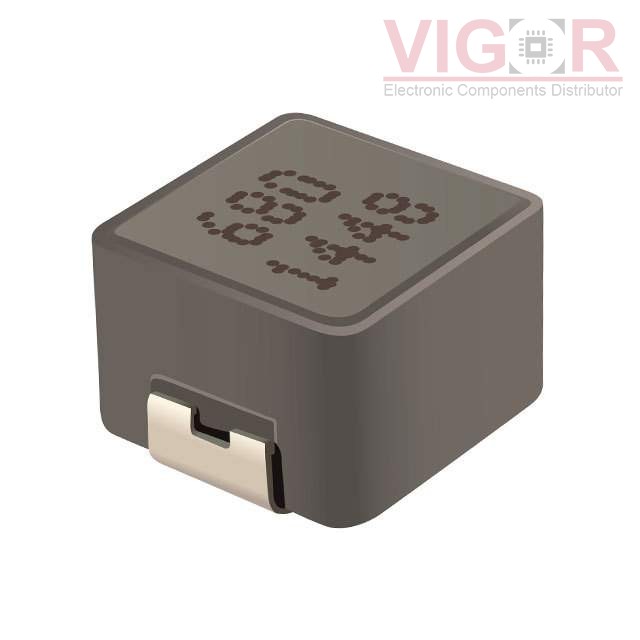

Image is for reference,
please contact us to get the real picture

Part No :: SRP7050TA-220M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 22UH 2.5A 170 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRP7050TA-220M PDF

Availability: 19 pieces

Unit Price: ~~$1.50000~~

Current price of SRP7050TA-220M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRP7050TA-220M Specifications

Type	Description
Series:	SRP7050TA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Carbonyl Powder
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	2.5 A
Current - Saturation (Isat):	5.5A
Shielding:	Shielded
DC Resistance (DCR):	170mOhm Max
Q @ Freq:	15 @ 100kHz
Frequency - Self Resonant:	9MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max):	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
