NS12575T680MN

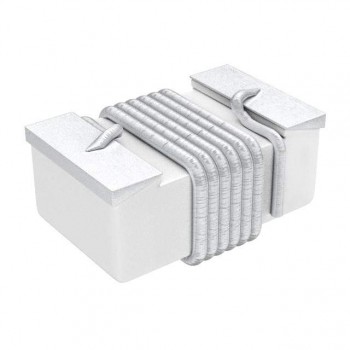

Image is for reference,
please contact us to get the real picture

Part No :: NS12575T680MN

Manufacturer: TAIYO YUDEN

Description: FIXED IND 68UH 2.49A 86.4 MOHM

Catalog: Fixed Inductors

DataSheet: NS12575T680MN PDF

Availability: 3823 pieces

Unit Price: ~~$1.47000~~

Current price of NS12575T680MN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NS12575T680MN Specifications

Type	Description
Series:	NS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	68 µH
Tolerance:	±20%
Current Rating (Amps):	2.49 A
Current - Saturation (Isat):	2.78A
Shielding:	Shielded
DC Resistance (DCR):	86.4mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	5.3MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max):	0.309" (7.85mm)
