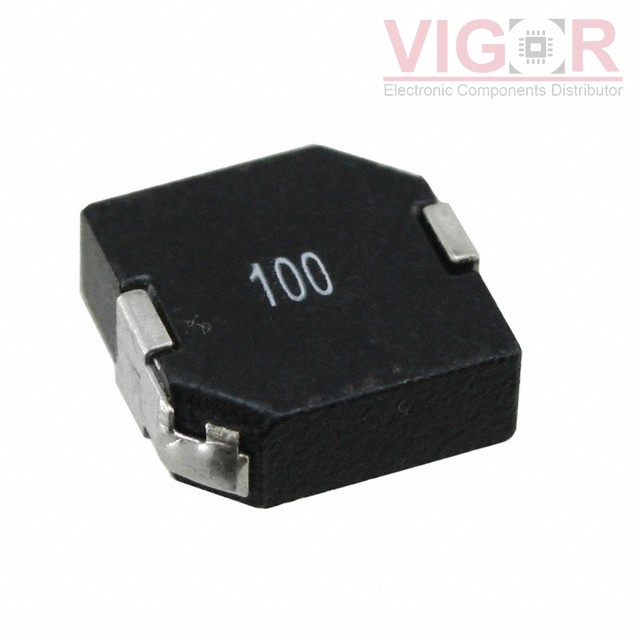

PM13560S-100M-RC

Part No :: PM13560S-100M-RC

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 1600327

Description: FIXED IND 10UH 9A 25.5 MOHM SMD

Catalog: Fixed Inductors

DataSheet: PM13560S-100M-RC PDF

Country of origin: -

Date code: -

PM13560S-100M-RC Specifications

Type	Description
Series:	PM13560S
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Iron
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	9 A
Current - Saturation (Isat):	16A
Shielding:	Shielded
DC Resistance (DCR):	25.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.547" L x 0.531" W (13.90mm x 13.50mm)
Height - Seated (Max):	0.232" (5.90mm)
