5022R-564F

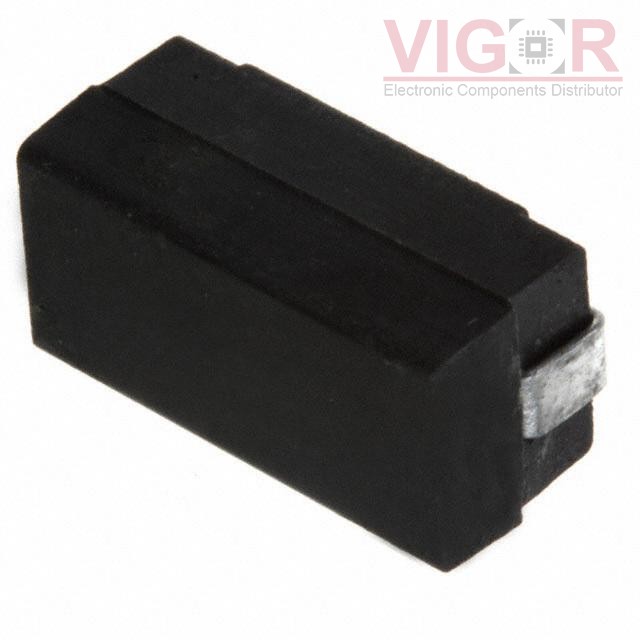

Part No :: 5022R-564F

Manufacturer: API Delevan

VIGOR # :: 1600371

Description: FIXED IND 560UH 136MA 19.5 OHM

Catalog: Fixed Inductors

DataSheet: 5022R-564F PDF

Country of origin: -

Date code: -

5022R-564F Specifications

Type	Description
Series:	5022R
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Iron
Inductance:	560 µH
Tolerance:	±1%
Current Rating (Amps):	136 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	19.5Ohm Max
Q @ Freq:	65 @ 790kHz
Frequency - Self Resonant:	3.8MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	790 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max):	0.230" (5.84mm)
