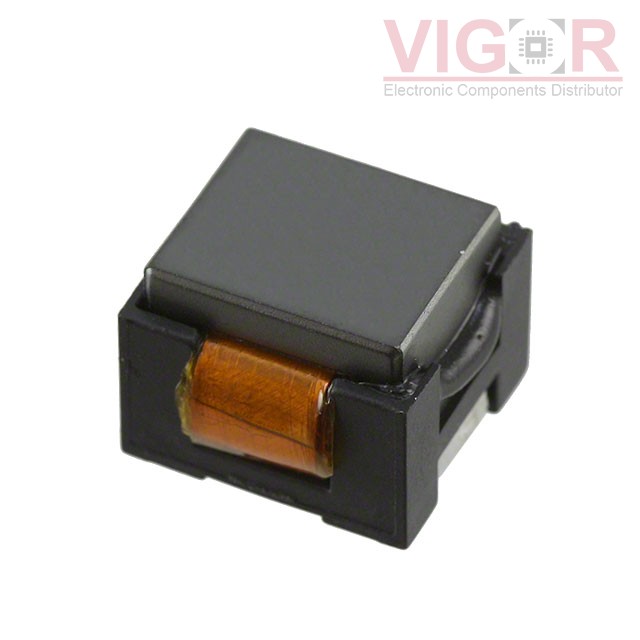

HC1-3R6-R

Image is for reference,
please contact us to get the real picture

Part No :: HC1-3R6-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 3.6UH 16.76A 3.5 MOHM

Catalog: Fixed Inductors

DataSheet: HC1-3R6-R PDF

Availability: 403 pieces

Unit Price: ~~$3.46000~~

Current price of HC1-3R6-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HC1-3R6-R Specifications

Type	Description
Series:	HC1
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	3.6 µH
Tolerance:	±15%
Current Rating (Amps):	16.76 A
Current - Saturation (Isat):	13.4A
Shielding:	Unshielded
DC Resistance (DCR):	3.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	300 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max):	0.394" (10.00mm)

Please confirm the specifications of the products when ordering.
