S1812R-561H

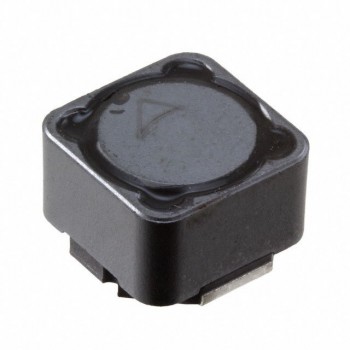

Image is for reference,
please contact us to get the real picture

Part No :: S1812R-561H

Manufacturer: API Delevan

Description: FIXED IND 560NH 735MA 370 MOHM

Catalog: Fixed Inductors

DataSheet: S1812R-561H PDF

Availability: 0 pieces

Unit Price: ~~$3.13760~~

Current price of S1812R-561H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

S1812R-561H Specifications

Type	Description
Series:	S1812R
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Iron
Inductance:	560 nH
Tolerance:	±3%
Current Rating (Amps):	735 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	370mOhm Max
Q @ Freq:	40 @ 25MHz
Frequency - Self Resonant:	185MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	25 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812 (4532 Metric)
Size / Dimension:	0.189" L x 0.134" W (4.80mm x 3.40mm)
Height - Seated (Max):	0.134" (3.40mm)

Please confirm the specifications of the products when ordering.
