ETQ-P8M1R5JFA

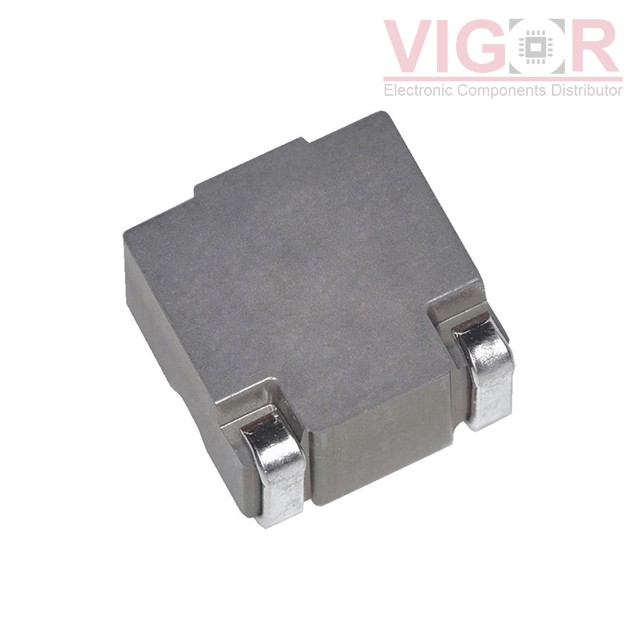

Image is for reference,
please contact us to get the real picture

Part No :: ETQ-P8M1R5JFA

Manufacturer: Panasonic

Description: FIXED IND 1.5UH 27.7A 1.98 MOHM

Catalog: Fixed Inductors

DataSheet: ETQ-P8M1R5JFA PDF

Availability: 291 pieces

Unit Price: ~~$3.18000~~

Current price of ETQ-P8M1R5JFA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ETQ-P8M1R5JFA Specifications

Type	Description
Series:	PCC-M1280MF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal Composite
Inductance:	1.5 µH
Tolerance:	±20%
Current Rating (Amps):	27.7 A
Current - Saturation (Isat):	29.9A
Shielding:	Shielded
DC Resistance (DCR):	1.98mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 160°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD, J-Lead
Supplier Device Package:	-
Size / Dimension:	0.496" L x 0.520" W (12.60mm x 13.20mm)
Height - Seated (Max):	0.315" (8.00mm)
