NR10050T220M

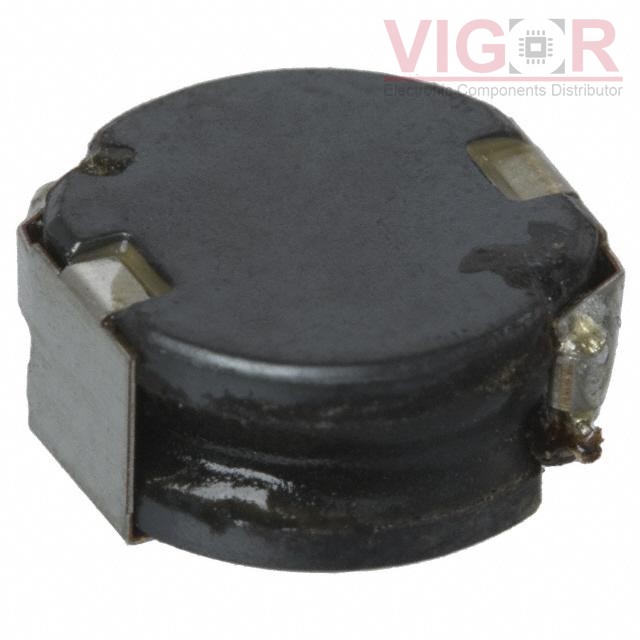

Image is for reference,
please contact us to get the real picture

Part No :: NR10050T220M

Manufacturer: TAIYO YUDEN

Description: FIXED IND 22UH 2.5A 58.5 MOHM

Catalog: Fixed Inductors

DataSheet: NR10050T220M PDF

Availability: 11933 pieces

Unit Price: ~~$0.88000~~

Current price of NR10050T220M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NR10050T220M Specifications

Type	Description
Series:	NR
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	2.5 A
Current - Saturation (Isat):	2.6A
Shielding:	Unshielded
DC Resistance (DCR):	58.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	10MHz
Ratings:	-
Operating Temperature:	-25°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.386" W (10.00mm x 9.80mm)
Height - Seated (Max):	0.197" (5.00mm)
