RLF10160T-101M1R1-D

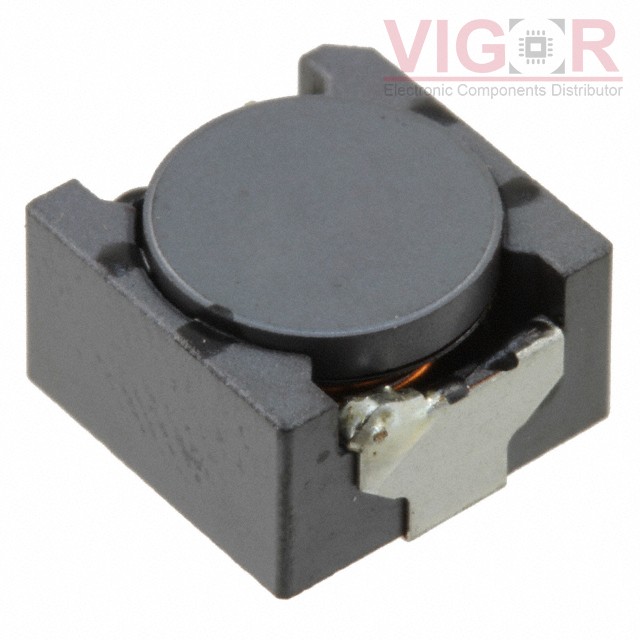

Product image
Product thumb
Part No :

RLF10160T-101M1R1-D

Manufacturer
TDK Corporation
VIGOR # :

1603720

Description
FIXED IND 100UH 1.1A 234 MOHM
Catalog
Fixed Inductors
DataSheet
RLF10160T-101M1R1-D PDF
Country of origin
-
Date code
-
ads
RLF10160T-101M1R1-D Specifications
Type Description
Series:RLF-D
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Not For New Designs
Type:Wirewound
Material - Core:Ferrite
Inductance:100 µH
Tolerance:±20%
Current Rating (Amps):1.1 A
Current - Saturation (Isat):1.7A
Shielding:Shielded
DC Resistance (DCR):234mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max):0.252" (6.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 732
Shipped from
HK warehouse
Expected Shipping Date
Dec 30 - Jan 03 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $3.05 $3.05
500 $1.60 $797.78
1000 $1.45 $1 454.77
2500 $1.41 $3 519.60
5000 $1.36 $6 804.60

Current price of RLF10160T-101M1R1-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
