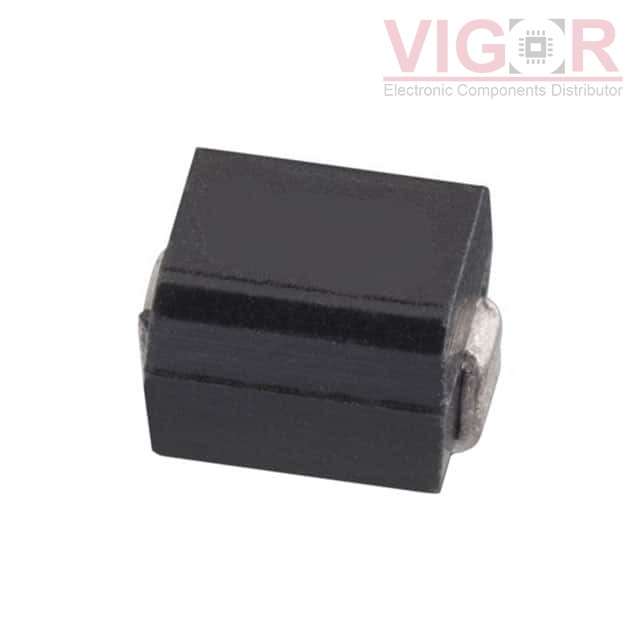

744764005

Part No :: 744764005

Manufacturer: Würth Elektronik Midcom

VIGOR # :: 1603947

Description: FIXED IND 560NH 450MA 550 MOHM

Catalog: Fixed Inductors

DataSheet: 744764005 PDF

Country of origin: -

Date code: -

744764005 Specifications

Type	Description
Series:	WE-GF
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	560 nH
Tolerance:	±10%
Current Rating (Amps):	450 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	550mOhm Max
Q @ Freq:	30 @ 25.2MHz
Frequency - Self Resonant:	499MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	25.2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	1210
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.094" (2.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Aug 02 - Aug 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.3300~~	~~$0.33~~

Current price of 744764005 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

HTPT66R-223K

FIXED IND 22UH 4A 36 MOHM TH

CB2518T220M

FIXED IND 22UH 580MA 650 MOHM

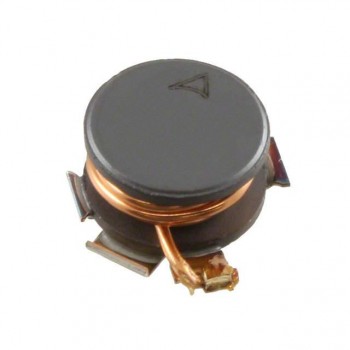

B82464A4103M000
