SRP1265A-5R6M

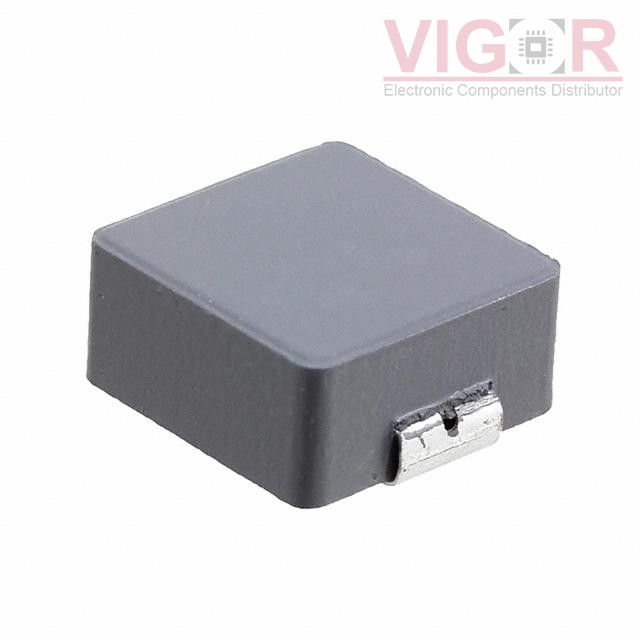

Image is for reference,
please contact us to get the real picture

Part No :: SRP1265A-5R6M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 5.6UH 12.5A 10MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRP1265A-5R6M PDF

Availability: 2978 pieces

Unit Price: ~~$1.82000~~

Current price of SRP1265A-5R6M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRP1265A-5R6M Specifications

Type	Description
Series:	SRP1265A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Carbonyl Powder
Inductance:	5.6 µH
Tolerance:	±20%
Current Rating (Amps):	12.5 A
Current - Saturation (Isat):	23A
Shielding:	Shielded
DC Resistance (DCR):	10mOhm Max
Q @ Freq:	20 @ 100kHz
Frequency - Self Resonant:	15MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max):	0.252" (6.40mm)
