Part No :

P1330-562G

Manufacturer
API Delevan
VIGOR # :

1605034

Description
FIXED IND 5.6UH 1.11A 145 MOHM
Catalog
Fixed Inductors
DataSheet
P1330-562G PDF
Country of origin
-
Date code
-
ads
Type Description
Series:P1330
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:5.6 µH
Tolerance:±2%
Current Rating (Amps):1.11 A
Current - Saturation (Isat):612mA
Shielding:Unshielded
DC Resistance (DCR):145mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.325" L x 0.125" W (8.26mm x 3.18mm)
Height - Seated (Max):0.145" (3.68mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Shipped from
HK warehouse
Expected Shipping Date
Dec 29 - Jan 02 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $4.10 $4.10
500 $3.60 $1 800.01

Current price of P1330-562G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

B82144A2105J000

B82144A2105J000

FIXED IND 1MH 200MA 3.8 OHM TH

S1210R-272K

S1210R-272K

FIXED IND 2.7UH 464MA 750 MOHM

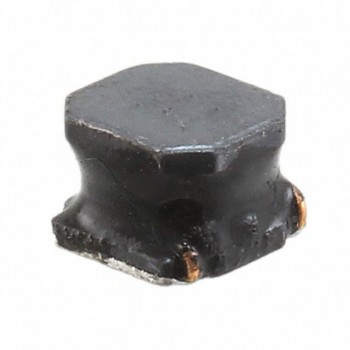

SRN5040-8R2M
