B78148E1683J000

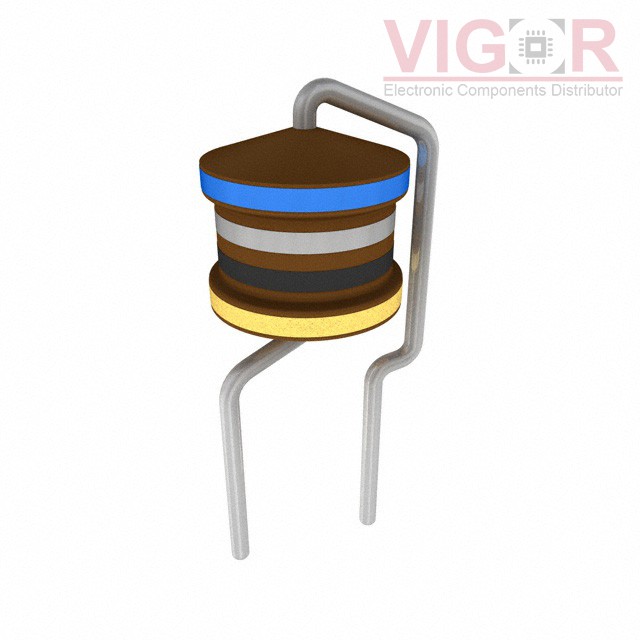

Image is for reference,
please contact us to get the real picture

Part No :: B78148E1683J000

Manufacturer: TDK EPCOS

Description: FIXED IND 68UH 780MA 900 MOHM TH

Catalog: Fixed Inductors

DataSheet: B78148E1683J000 PDF

Availability: 938 pieces

Unit Price: ~~$0.41000~~

Current price of B78148E1683J000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B78148E1683J000 Specifications

Type	Description
Series:	BC+
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	68 µH
Tolerance:	±5%
Current Rating (Amps):	780 mA
Current - Saturation (Isat):	720mA
Shielding:	Unshielded
DC Resistance (DCR):	900mOhm Max
Q @ Freq:	45 @ 796kHz
Frequency - Self Resonant:	6.5MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial
Supplier Device Package:	-
Size / Dimension:	0.157" Dia (4.00mm)
Height - Seated (Max):	0.453" (11.50mm)
