B82144A2102K009

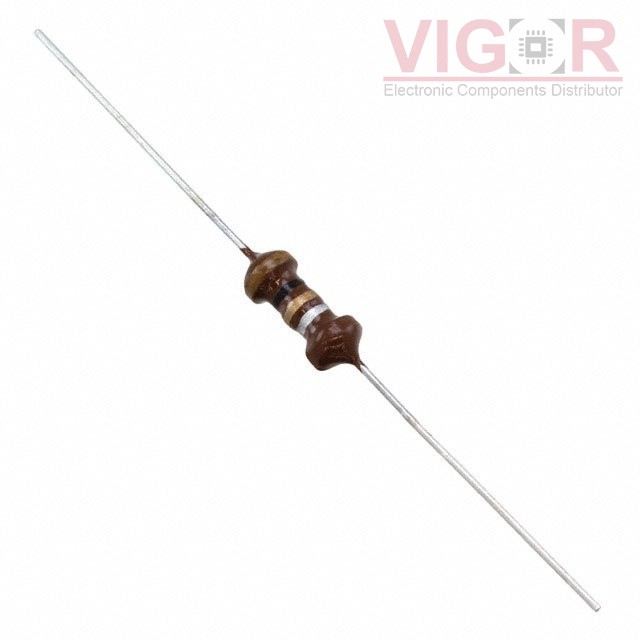

Image is for reference,
please contact us to get the real picture

Part No :: B82144A2102K009

Manufacturer: TDK EPCOS

Description: FIXED IND 1UH 2.2A 80 MOHM TH

Catalog: Fixed Inductors

DataSheet: B82144A2102K009 PDF

Availability: 0 pieces

Unit Price: ~~$0.20538~~

Current price of B82144A2102K009 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82144A2102K009 Specifications

Type	Description
Series:	LBC
Package:	Tape & Box (TB)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	1 µH
Tolerance:	±10%
Current Rating (Amps):	2.2 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	80mOhm Max
Q @ Freq:	40 @ 7.96MHz
Frequency - Self Resonant:	200MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.205" Dia x 0.472" L (5.20mm x 12.00mm)
Height - Seated (Max):	-

Please confirm the specifications of the products when ordering.
