7687709222

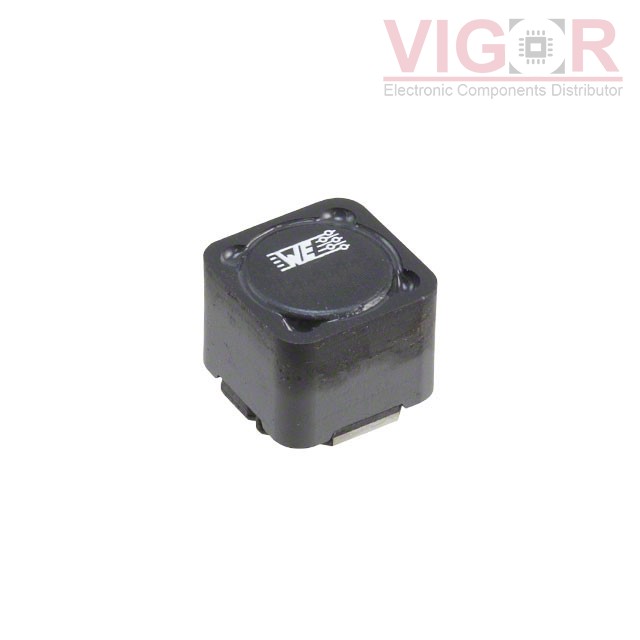

Image is for reference,
please contact us to get the real picture

Part No :: 7687709222

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 2.2MH 430MA 3.7 OHM

Catalog: Fixed Inductors

DataSheet: 7687709222 PDF

Availability: 113 pieces

Unit Price: ~~$3.34000~~

Current price of 7687709222 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7687709222 Specifications

Type	Description
Series:	WE-PD HV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	2.2 mH
Tolerance:	±20%
Current Rating (Amps):	430 mA
Current - Saturation (Isat):	650mA
Shielding:	Shielded
DC Resistance (DCR):	3.7Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	800kHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max):	0.413" (10.50mm)
