18R685C

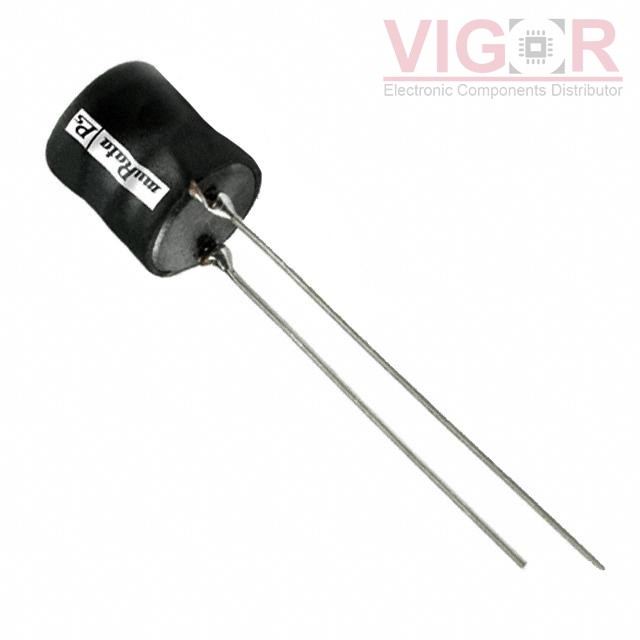

Image is for reference,
please contact us to get the real picture

Part No :: 18R685C

Manufacturer: Murata Power Solutions

Description: FIXED IND 6.8MH 150MA 7 OHM TH

Catalog: Fixed Inductors

DataSheet: 18R685C PDF

Availability: 0 pieces

Unit Price: ~~$1.29000~~

Current price of 18R685C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

18R685C Specifications

Type	Description
Series:	1800R
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	6.8 mH
Tolerance:	±10%
Current Rating (Amps):	150 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	7Ohm Max
Q @ Freq:	143 @ 40kHz
Frequency - Self Resonant:	710kHz
Ratings:	-
Operating Temperature:	0°C ~ 70°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	Radial Lead
Size / Dimension:	0.539" Dia (13.70mm)
Height - Seated (Max):	0.626" (15.90mm)
