SM2518-3R3MHF

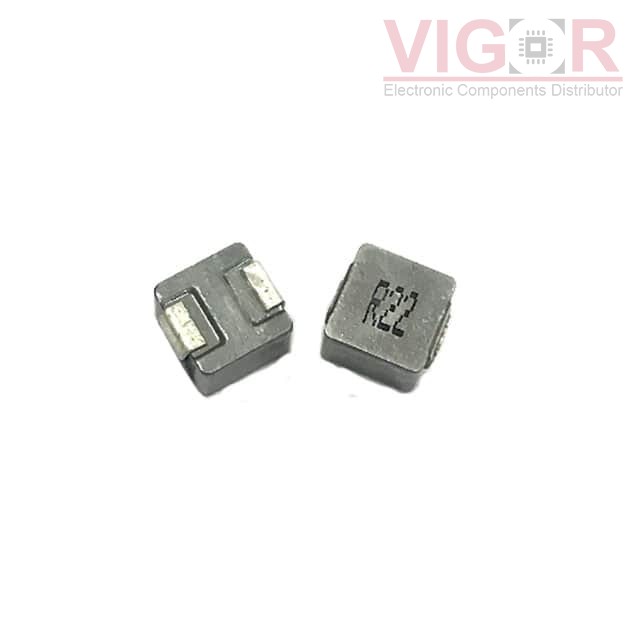

Image is for reference,
please contact us to get the real picture

Part No :: SM2518-3R3MHF

Manufacturer: ITG Electronics, Inc.

Description: 3.3UH, 20%, 19.9MOHM, 12AMP MAX.

Catalog: Fixed Inductors

DataSheet: SM2518-3R3MHF PDF

Availability: 0 pieces

Unit Price: ~~$1.05000~~

Current price of SM2518-3R3MHF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SM2518-3R3MHF Specifications

Type	Description
Series:	SM2518
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Molded
Material - Core:	Metal
Inductance:	3.3 µH
Tolerance:	±20%
Current Rating (Amps):	8 A
Current - Saturation (Isat):	12A
Shielding:	Shielded
DC Resistance (DCR):	20.9mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max):	0.197" (5.00mm)
