BRHL2518T3R3MD

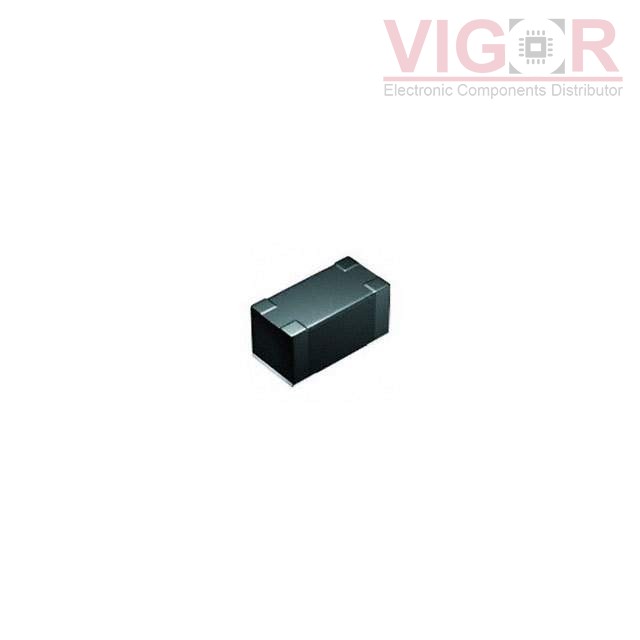

Image is for reference,
please contact us to get the real picture

Part No :: BRHL2518T3R3MD

Manufacturer: TAIYO YUDEN

Description: FIXED IND 3.3UH 800MA 214.5 MOHM

Catalog: Fixed Inductors

DataSheet: BRHL2518T3R3MD PDF

Availability: 1493 pieces

Unit Price: ~~$0.31000~~

Current price of BRHL2518T3R3MD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BRHL2518T3R3MD Specifications

Type	Description
Series:	BR, HL Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	3.3 µH
Tolerance:	±20%
Current Rating (Amps):	800 mA
Current - Saturation (Isat):	1.2A
Shielding:	Unshielded
DC Resistance (DCR):	214.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	200MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1007 (2518 Metric)
Supplier Device Package:	1007 (2518 Metric)
Size / Dimension:	0.098" L x 0.071" W (2.50mm x 1.80mm)
Height - Seated (Max):	0.059" (1.50mm)
