HCM1A1307-1R5-R

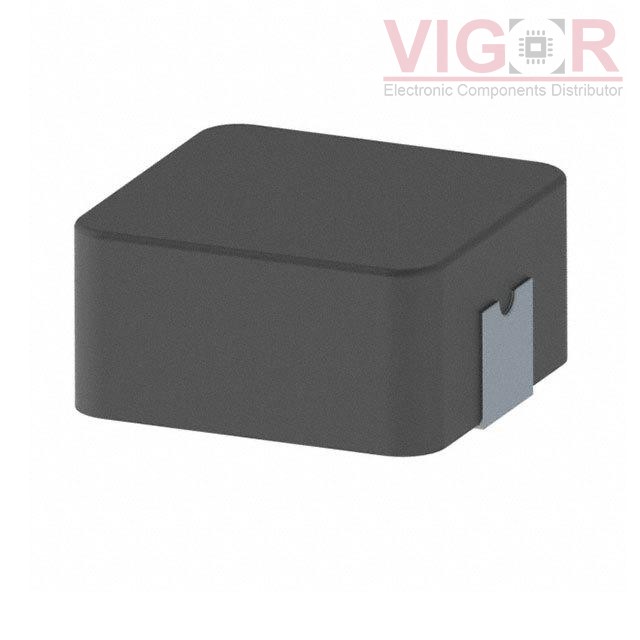

Image is for reference,
please contact us to get the real picture

Part No :: HCM1A1307-1R5-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 1.5UH 20.5A 2.35 MOHM

Catalog: Fixed Inductors

DataSheet: HCM1A1307-1R5-R PDF

Availability: 0 pieces

Unit Price: ~~$3.04436~~

Current price of HCM1A1307-1R5-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCM1A1307-1R5-R Specifications

Type	Description
Series:	HCM1A
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Iron Powder
Inductance:	1.5 µH
Tolerance:	±20%
Current Rating (Amps):	20.5 A
Current - Saturation (Isat):	26A
Shielding:	Shielded
DC Resistance (DCR):	2.35mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.539" L x 0.512" W (13.70mm x 13.00mm)
Height - Seated (Max):	0.256" (6.50mm)
