LQH43PN100M26L

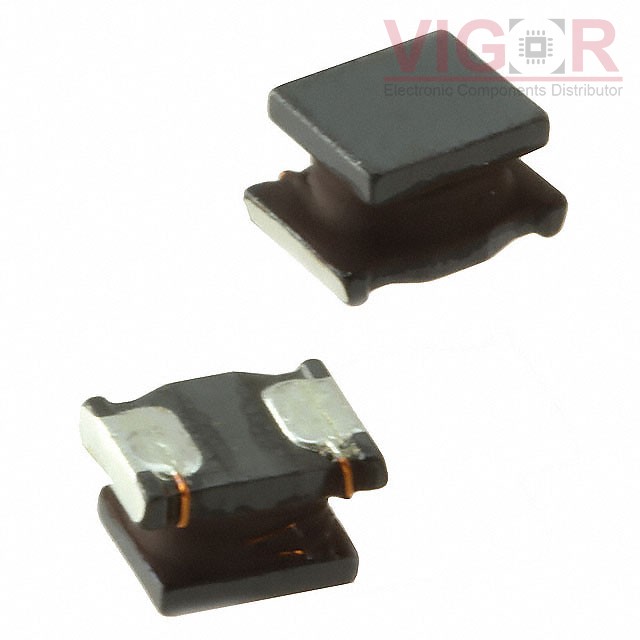

Image is for reference,
please contact us to get the real picture

Part No :: LQH43PN100M26L

Manufacturer: TOKO / Murata

Description: FIXED IND 10UH 1.17A 176.4 MOHM

Catalog: Fixed Inductors

DataSheet: LQH43PN100M26L PDF

Availability: 22402 pieces

Unit Price: ~~$0.40000~~

Current price of LQH43PN100M26L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LQH43PN100M26L Specifications

Type	Description
Series:	LQH43
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	1.17 A
Current - Saturation (Isat):	1.05A
Shielding:	Shielded
DC Resistance (DCR):	176.4mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	20MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812 (4532 Metric)
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.110" (2.80mm)
