IMC1812ESR33M

Part No :: IMC1812ESR33M

Manufacturer: Vishay / Dale

VIGOR # :: 1607344

Description: FIXED IND 330NH 430MA 550 MOHM

Catalog: Fixed Inductors

DataSheet: IMC1812ESR33M PDF

Country of origin: -

Date code: -

IMC1812ESR33M Specifications

Type	Description
Series:	IMC-1812
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Non-Magnetic
Inductance:	330 nH
Tolerance:	±20%
Current Rating (Amps):	430 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	550mOhm Max
Q @ Freq:	30 @ 25.2MHz
Frequency - Self Resonant:	250MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	25.2 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.134" (3.40mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 01 - Jan 05 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.35~~	~~$0.35~~
2000	~~$0.35~~	~~$707.20~~
4000	~~$0.33~~	~~$1 331.20~~
6000	~~$0.32~~	~~$1 934.40~~
10000	~~$0.31~~	~~$3 120.00~~

Current price of IMC1812ESR33M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

AISC-0805-R033J-T

FIXED IND 33NH 500MA 270 MOHM

LQH32CH4R7M23L

FIXED IND 4.7UH 450MA 200 MOHM

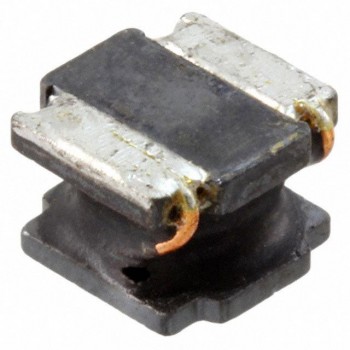

74404064018
