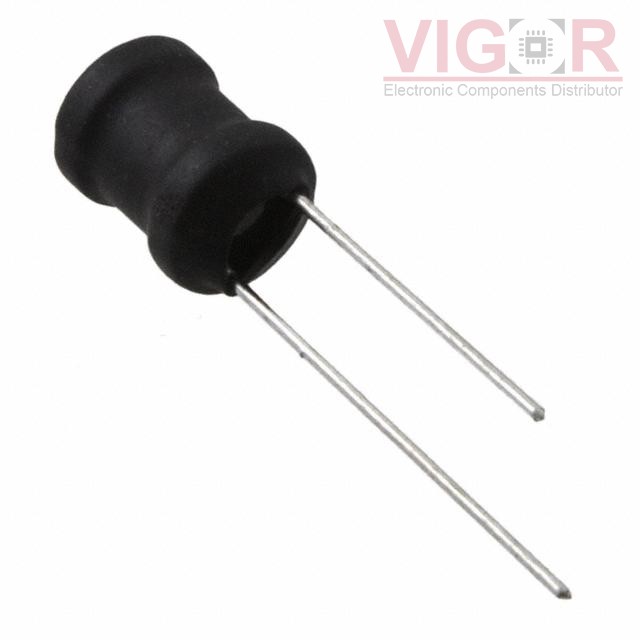

RLB9012-681KL

Part No :: RLB9012-681KL

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 1607654

Description: FIXED IND 680UH 590MA 1.6 OHM TH

Catalog: Fixed Inductors

DataSheet: RLB9012-681KL PDF

Country of origin: -

Date code: -

RLB9012-681KL Specifications

Type	Description
Series:	RLB9012
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	680 µH
Tolerance:	±10%
Current Rating (Amps):	590 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.6Ohm Max
Q @ Freq:	20 @ 796kHz
Frequency - Self Resonant:	1.6MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.354" Dia (9.00mm)
Height - Seated (Max):	0.480" (12.20mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 29823

Shipped from

HK warehouse

Expected Shipping Date

Apr 01 - Apr 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.7900~~	~~$0.79~~
10	~~$0.6942~~	~~$6.94~~
100	~~$0.4954~~	~~$49.54~~
500	~~$0.4161~~	~~$208.05~~
1000	~~$0.3368~~	~~$336.85~~
2500	~~$0.3170~~	~~$792.60~~

Current price of RLB9012-681KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

HKQ0603U1N8B-T

FIXED IND 1.8NH 640MA 120 MOHM

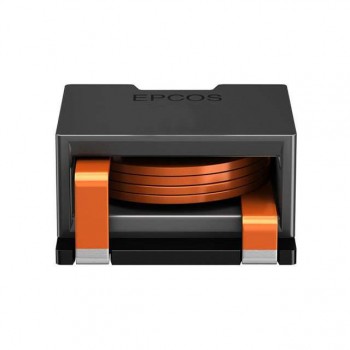

B82559A2102A019

FIXED IND 1UH 1.2 MOHM SMD

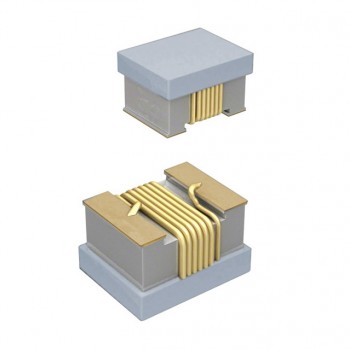

AISM-1812-R33M-T
