MPL-AY3020-R68

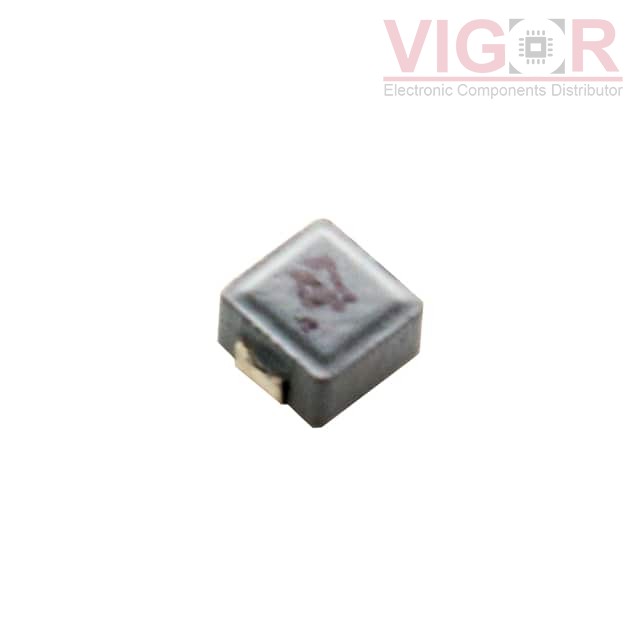

Image is for reference,
please contact us to get the real picture

Part No :: MPL-AY3020-R68

Manufacturer: MPS (Monolithic Power Systems)

Description: FIXED IND 680NH 5.15A 26 MOHM

Catalog: Fixed Inductors

DataSheet: MPL-AY3020-R68 PDF

Availability: 3000 pieces

Unit Price: ~~$1.12000~~

Current price of MPL-AY3020-R68 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MPL-AY3020-R68 Specifications

Type	Description
Series:	MPL-AY
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	-
Inductance:	680 nH
Tolerance:	-
Current Rating (Amps):	5.15 A
Current - Saturation (Isat):	8.6A
Shielding:	Unshielded
DC Resistance (DCR):	26mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD, J-Lead
Supplier Device Package:	-
Size / Dimension:	0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max):	0.079" (2.00mm)

Please confirm the specifications of the products when ordering.
