5022R-164J

Part No :: 5022R-164J

Manufacturer: API Delevan

VIGOR # :: 1608290

Description: FIXED IND 160UH 230MA 6.4 OHM

Catalog: Fixed Inductors

DataSheet: 5022R-164J PDF

Country of origin: -

Date code: -

5022R-164J Specifications

Type	Description
Series:	5022R
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Iron
Inductance:	160 µH
Tolerance:	±5%
Current Rating (Amps):	230 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	6.4Ohm Max
Q @ Freq:	65 @ 790kHz
Frequency - Self Resonant:	7.5MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	790 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max):	0.230" (5.84mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Dec 28 - Jan 01 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.06~~	~~$2.06~~
800	~~$1.70~~	~~$1 363.19~~

Current price of 5022R-164J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

5022-163H

FIXED IND 16UH 420MA 1.8 OHM SMD

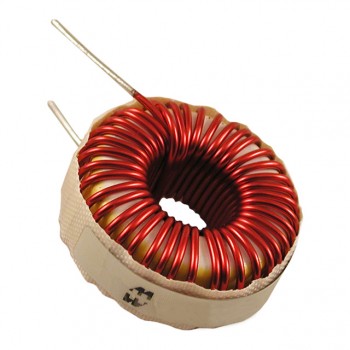

1540M24

FIXED IND 4MH 1.75A 1.16 OHM TH

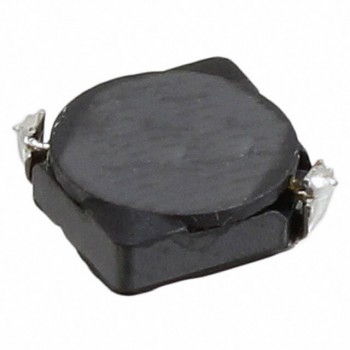

CDRH5D18NP-560NC
