74436411500

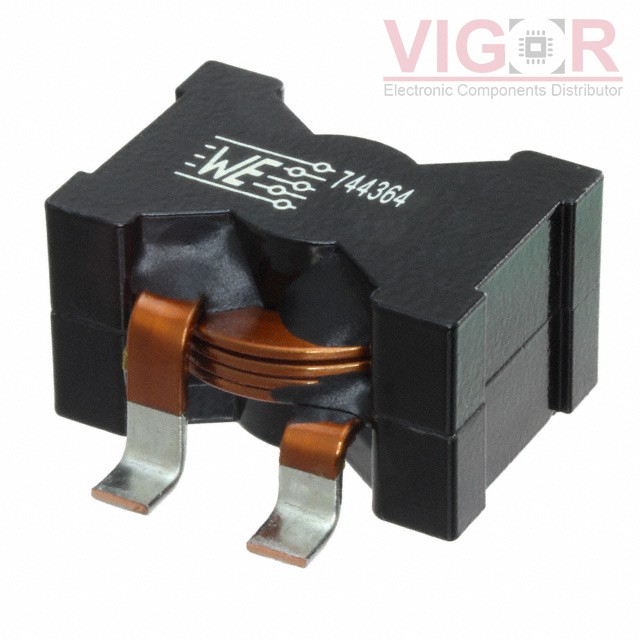

Image is for reference,
please contact us to get the real picture

Part No :: 74436411500

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 15UH 36A 1.441 MOHM

Catalog: Fixed Inductors

DataSheet: 74436411500 PDF

Availability: 37 pieces

Unit Price: ~~$8.11000~~

Current price of 74436411500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

74436411500 Specifications

Type	Description
Series:	WE-HCF
Package:	Tray
Part Status:	Active
Type:	Wirewound
Material - Core:	Manganese Zinc Ferrite (MnZn)
Inductance:	15 µH
Tolerance:	±15%
Current Rating (Amps):	36 A
Current - Saturation (Isat):	14.3A
Shielding:	Shielded
DC Resistance (DCR):	1.441mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	10.73MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	2815
Size / Dimension:	1.102" L x 0.764" W (28.00mm x 19.40mm)
Height - Seated (Max):	0.606" (15.40mm)
