LGJ7045TC-3R3N-D

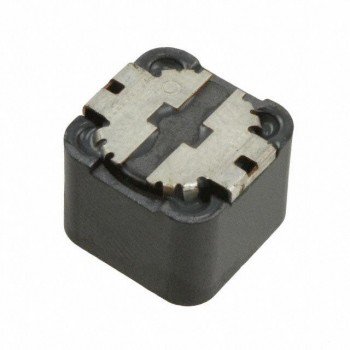

Image is for reference,
please contact us to get the real picture

Part No :: LGJ7045TC-3R3N-D

Manufacturer: TDK Corporation

Description: FIXED IND 3.3UH 4.1A 16.4 MOHM

Catalog: Fixed Inductors

DataSheet: LGJ7045TC-3R3N-D PDF

Availability: 0 pieces

Unit Price: ~~$2.35950~~

Current price of LGJ7045TC-3R3N-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LGJ7045TC-3R3N-D Specifications

Type	Description
Series:	LGJ
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	3.3 µH
Tolerance:	±30%
Current Rating (Amps):	4.1 A
Current - Saturation (Isat):	5A
Shielding:	Shielded
DC Resistance (DCR):	16.4mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.283" L x 0.272" W (7.20mm x 6.90mm)
Height - Seated (Max):	0.177" (4.50mm)
