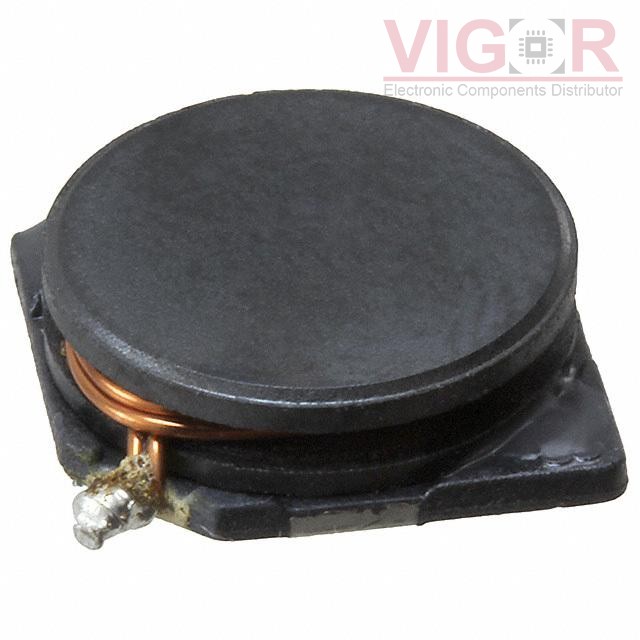

SDR1030-220M

Part No :: SDR1030-220M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 22UH 1.38A 145MOHM SMD

Catalog: Fixed Inductors

DataSheet: SDR1030-220M PDF

Availability: 0 pieces

Unit Price: ~~$0.41140~~

Current price of SDR1030-220M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SDR1030-220M Specifications

Type	Description
Series:	SDR1030
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1.38 A
Current - Saturation (Isat):	1.6A
Shielding:	Unshielded
DC Resistance (DCR):	145mOhm Max
Q @ Freq:	20 @ 2.52MHz
Frequency - Self Resonant:	22.3MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max):	0.130" (3.30mm)
