TYS6020220M-10

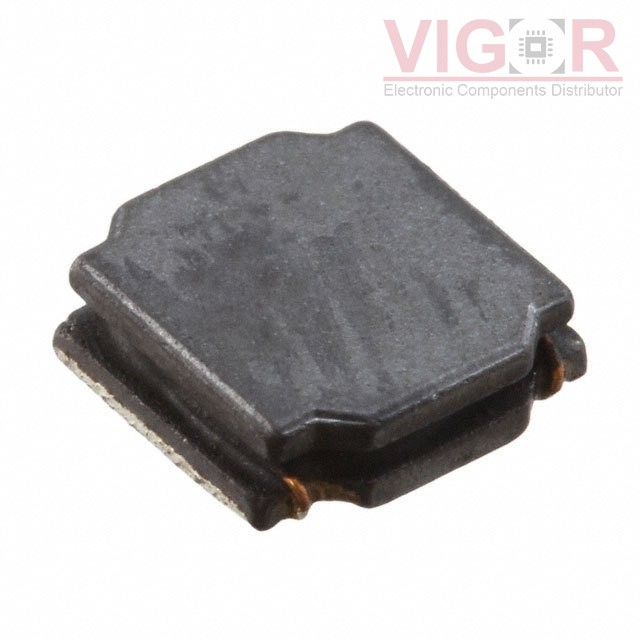

Image is for reference,
please contact us to get the real picture

Part No :: TYS6020220M-10

Manufacturer: Laird - Performance Materials

Description: FIXED IND 22UH 1A 204 MOHM SMD

Catalog: Fixed Inductors

DataSheet: TYS6020220M-10 PDF

Availability: 0 pieces

Unit Price: ~~$0.16391~~

Current price of TYS6020220M-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TYS6020220M-10 Specifications

Type	Description
Series:	TYS6020
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	-
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1 A
Current - Saturation (Isat):	1.05A
Shielding:	Shielded
DC Resistance (DCR):	204mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	16MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max):	0.087" (2.20mm)

Please confirm the specifications of the products when ordering.
