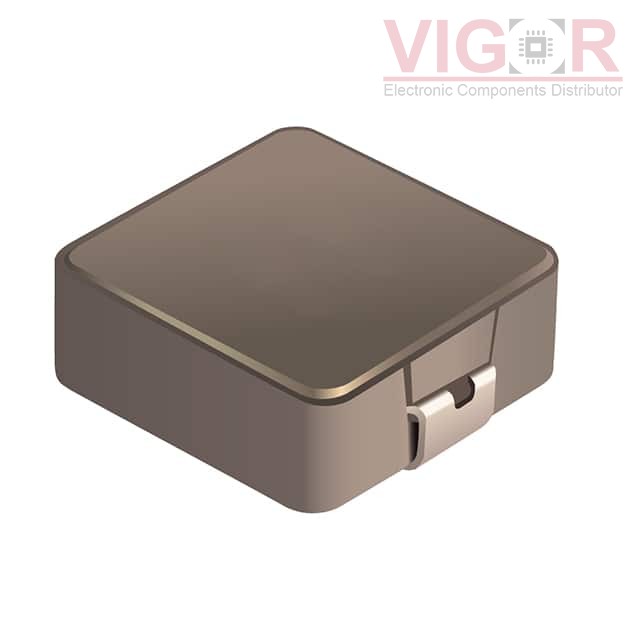

SRP1040VA-220M

Part No :: SRP1040VA-220M

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 1610144

Description: FIXED IND 22UH 6A 72MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRP1040VA-220M PDF

Country of origin: -

Date code: -

SRP1040VA-220M Specifications

Type	Description
Series:	SRP1040VA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	6 A
Current - Saturation (Isat):	6.5A
Shielding:	Shielded
DC Resistance (DCR):	72mOhm Max
Q @ Freq:	20 @ 100kHz
Frequency - Self Resonant:	7MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 180°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max):	0.157" (4.00mm)
